Tracing Guide

This comprehensive guide covers everything about tracing in Langfuse — from instrumenting your code to analyzing traces in the dashboard.

Understanding Traces

A trace represents a complete execution of your application — from receiving a user request to returning a response. Traces contain nested observations that show each step of the execution.

Trace Structure

Trace: "handle_user_message"
│
├── Observation (Span): "validate_input"
│   └── Duration: 12ms
│
├── Observation (Span): "retrieve_context"
│   ├── Observation (Span): "embed_query"
│   │   └── Duration: 80ms
│   └── Observation (Span): "vector_search"
│       └── Duration: 150ms
│
├── Observation (Generation): "gpt-4o"
│   ├── Input: 1,456 tokens
│   ├── Output: 342 tokens
│   ├── Cost: $0.0234
│   └── Duration: 890ms
│
└── Observation (Span): "format_response"
    └── Duration: 25ms

SDK Auto-Generated Trace Structure

When using the CAIP Agents SDK, the following structure is created automatically:

Trace (tags, user_id, session_id, input, output)
│
├── Generation: "caip.pydantic_ai.run" [model=gpt-4o]
│   ├── Input: user prompt
│   ├── Output: model response
│   ├── Token Usage & Cost
│   ├── Tool: "caip.tool.search_database"
│   └── Span: "caip.api.create_message"
│
└── (or "caip.pydantic_ai.stream" / "caip.pydantic_ai.iter" for streaming)

The SDK names generations as caip.{framework}.{method}:

Name	Framework	Method
`caip.pydantic_ai.run`	PydanticAI	Synchronous run
`caip.pydantic_ai.stream`	PydanticAI	Streaming
`caip.pydantic_ai.iter`	PydanticAI	Iterative
`caip.langchain.run`	LangChain	Invoke
`caip.langchain.stream`	LangChain	Streaming

Core Concepts

Concept	Description
Trace	The root container for a complete execution
Observation	An individual operation within a trace
Span	A general-purpose observation for any operation
Generation	An LLM call with token counts and costs
Event	A point-in-time occurrence (log-like)

Viewing Traces in Langfuse

Trace List View

The Trace List is your primary view for finding and filtering traces.

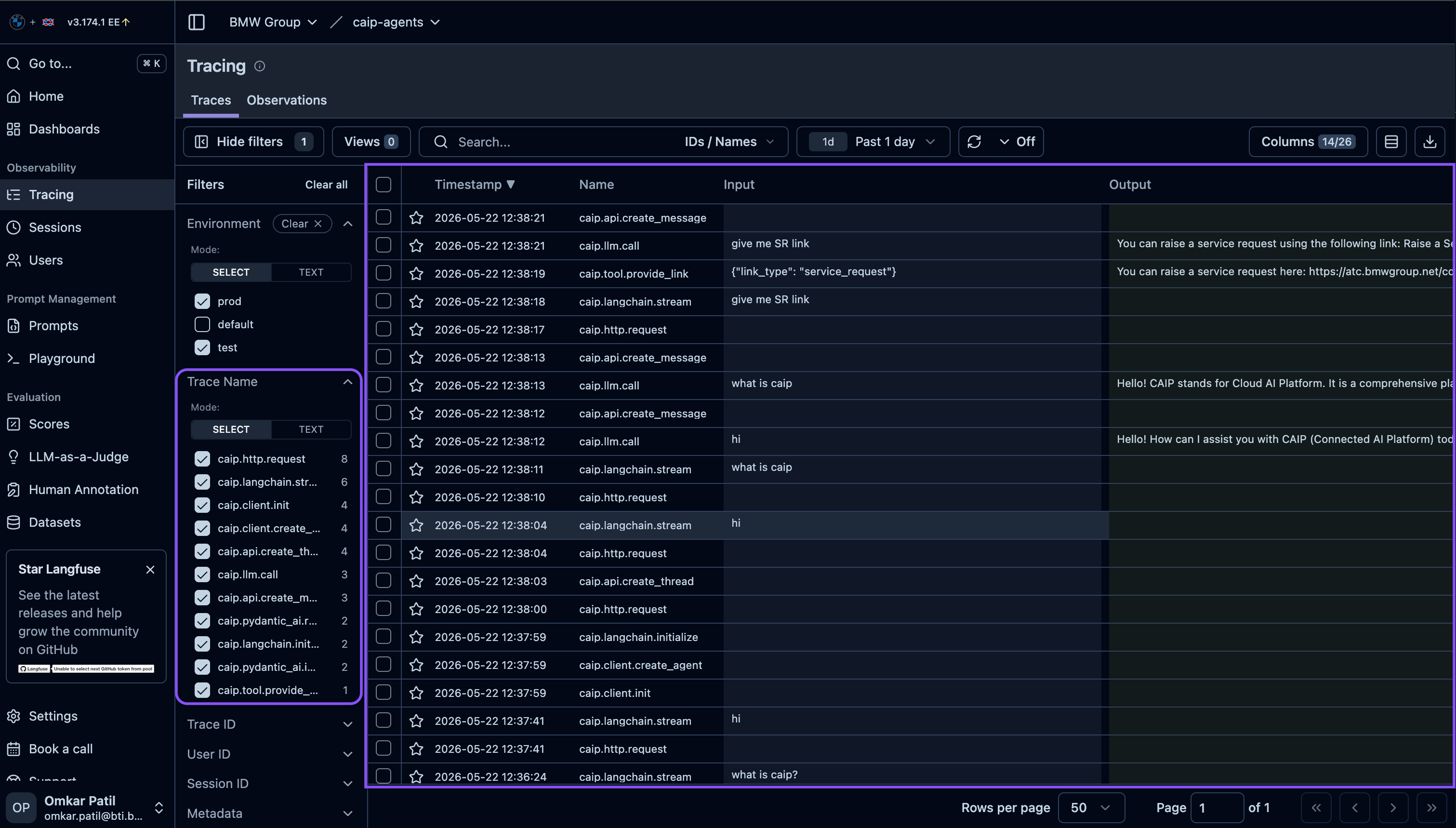

Traces List

Column	Description
Timestamp	When the trace started
Name	Root observation name (e.g., `agent:handle_request`)
Input	Preview of the trace input (user query)
Output	Preview of the trace output (response)
User	User ID if set via `propagate_attributes`
Session	Session ID for grouping conversations
Latency	Total execution time
Tokens	Input + output token count
Cost	Estimated cost based on model pricing
Tags	Custom labels for filtering

Filtering Traces

Use filters to find specific traces:

Filter	Example	Use Case
Name	`rag:answer_question`	Find specific operations
User ID	`QX11111`	Debug a specific user's issues
Session ID	`sess_abc123`	View complete conversation
Tags	`production`	Separate environments
Date Range	Last 24 hours	Recent activity
Latency	`> 5000ms`	Find slow requests
Cost	`> $0.10`	Find expensive requests

Single Trace View

Click any trace to see its complete execution tree:

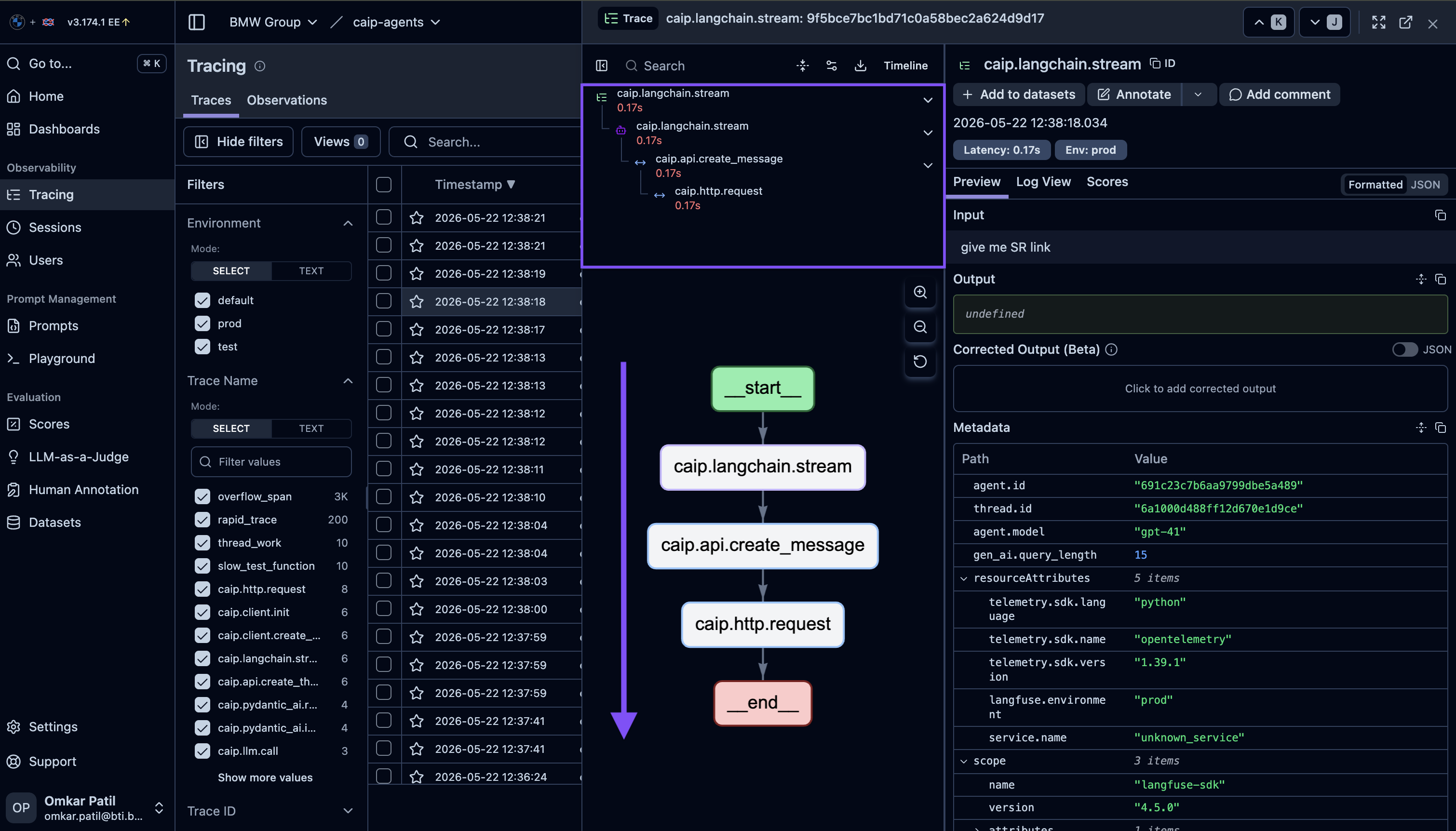

Single Trace

Trace tree shows:

Hierarchy: Parent-child relationships between observations
Timing: Duration bars showing relative execution time
Types: Icons indicating observation type (span, generation, tool)
Status: Success/error state for each observation

Click any observation in the tree to see:

Input: Arguments passed to the function
Output: Return value
Metadata: Custom key-value pairs
Timing: Start time, duration, end time
For Generations: Model, tokens, cost

Generation Analysis

The Generation view focuses specifically on LLM calls.

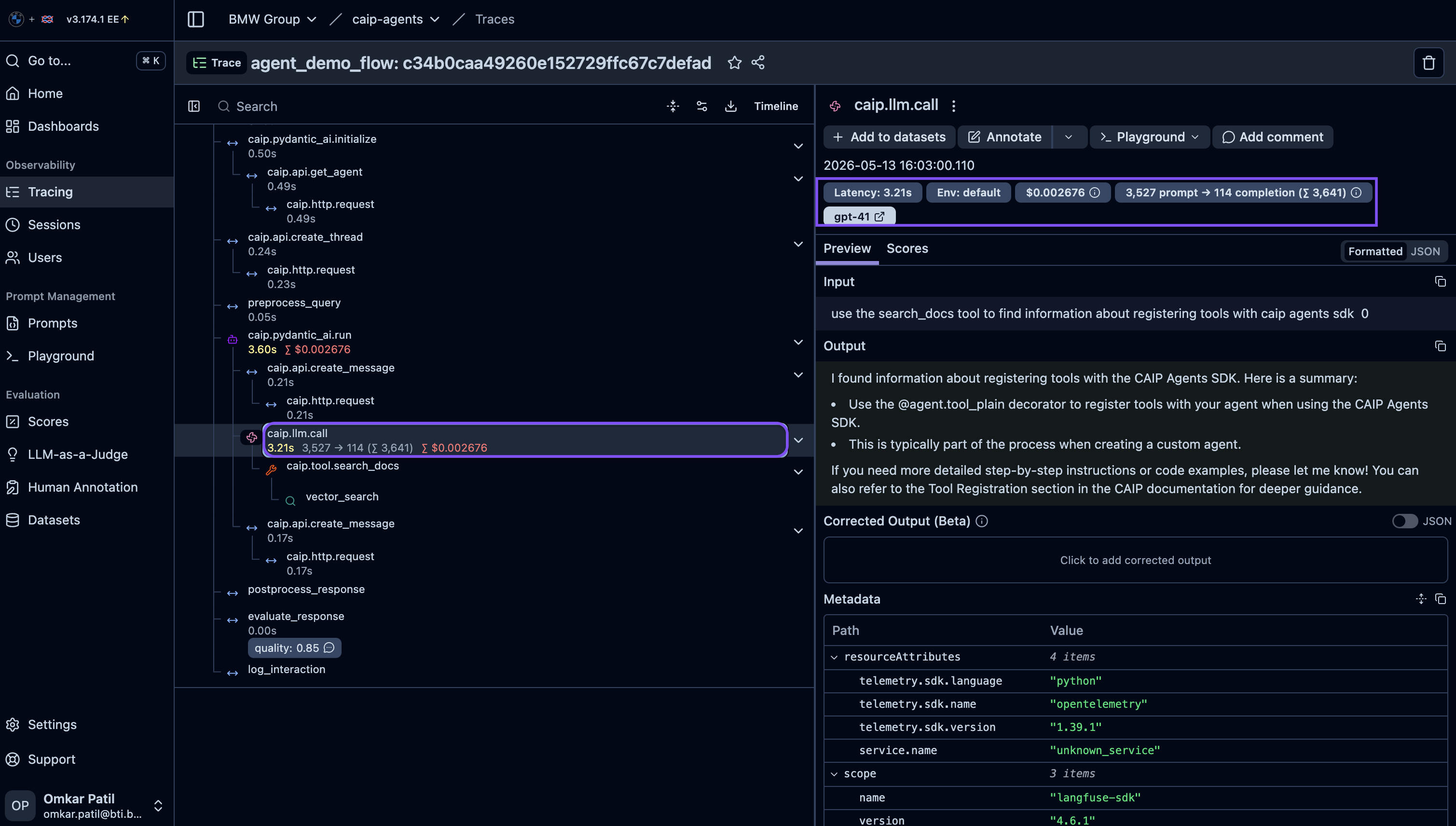

Generation Detail

Generation Details

Field	Description
Model	Model identifier (e.g., `gpt-4o`, `claude-3-sonnet`)
Input	Complete prompt sent to the model
Output	Full model response
Input Tokens	Tokens in the prompt
Output Tokens	Tokens in the completion
Total Tokens	Sum of input + output
Cost	Estimated cost (calculated from token counts)
Latency	Time to first token / total time

Why This Matters

Debug prompts: See exactly what was sent to the model
Optimize costs: Identify expensive prompts
Reduce latency: Find slow generations
Compare models: Analyze performance across different models

Observation Types

The as_type parameter determines how Langfuse categorizes and displays observations:

Type	Use Case	Icon
`span`	General operations (default)	○
`generation`	LLM/model calls	⚡
`retriever`	Vector/document retrieval	🔍
`tool`	Tool/function invocations	🔧
`agent`	Agent orchestration	🤖
`chain`	Multi-step pipelines	⛓️
`embedding`	Embedding generation	📊
`guardrail`	Safety/validation checks	🛡️

Complete Runnable Examples

Want to copy-paste and run these examples immediately? See the Complete Examples page for full working code with all imports and setup.

Observation Type Examples

Span (Default)

When to use: General-purpose operations, validation, formatting, any processing step.

from caip_agents_sdk.observability import observe

@observe(name="validate_input")
async def validate_input(text: str) -> bool:
    """Validate user input before processing."""
    if not text or len(text) > 10000:
        return False
    return True

@observe(name="format_response")
async def format_response(data: dict) -> str:
    """Format the final response for the user."""
    return json.dumps(data, indent=2)

Expected trace output:

Trace: handle_request
├── Span: validate_input (12ms)
└── Span: format_response (8ms)

Generation

When to use: LLM calls, model completions, text generation.

from caip_agents_sdk.observability import observe
import openai

@observe(name="llm:generate_response", as_type="generation")
async def generate_response(prompt: str) -> str:
    """Call GPT-4 to generate a response."""
    response = await openai.ChatCompletion.acreate(
        model="gpt-4o",
        messages=[{"role": "user", "content": prompt}]
    )
    return response.choices[0].message.content

Expected trace output:

Trace: answer_question
└── Generation: llm:generate_response (1,234ms)
    ├── Model: gpt-4o
    ├── Input Tokens: 456
    ├── Output Tokens: 128
    └── Cost: $0.0089

Retriever

When to use: Vector search, document retrieval, semantic search, RAG context fetching.

from caip_agents_sdk.observability import observe

@observe(name="rag:retrieve_documents", as_type="retriever")
async def retrieve_documents(query: str, k: int = 5) -> list:
    """Retrieve relevant documents from vector store."""
    embedding = await embed_query(query)
    results = await vector_store.search(embedding, top_k=k)
    return [
        {"content": r.content, "score": r.score}
        for r in results
    ]

Expected trace output:

Trace: rag_pipeline
├── Retriever: rag:retrieve_documents (234ms)
│   ├── Input: "How do I deploy an agent?"
│   └── Output: [5 documents retrieved]
└── Generation: llm:answer (890ms)

Tool

When to use: Function calls, tool invocations, external actions, API calls.

from caip_agents_sdk.observability import observe

@observe(name="tool:send_email", as_type="tool")
async def send_email(to: str, subject: str, body: str) -> dict:
    """Send an email using the email service."""
    result = await email_client.send(
        recipient=to,
        subject=subject,
        body=body
    )
    return {"status": "sent", "message_id": result.id}

@observe(name="tool:search_database", as_type="tool")
async def search_database(query: str) -> list:
    """Search the product database."""
    return await db.search(query)

Expected trace output:

Trace: agent_execute
├── Tool: tool:search_database (156ms)
│   ├── Input: {"query": "red shoes size 10"}
│   └── Output: [3 products found]
└── Tool: tool:send_email (89ms)
    ├── Input: {"to": "user@example.com", ...}
    └── Output: {"status": "sent"}

Agent

When to use: Agent orchestration, planning, task delegation.

from caip_agents_sdk.observability import observe

@observe(name="agent:plan_and_execute", as_type="agent")
async def plan_and_execute(goal: str) -> str:
    """Main agent that plans and executes tasks."""
    plan = await create_plan(goal)
    results = []

    for step in plan:
        result = await execute_step(step)
        results.append(result)

    return await summarize_results(results)

@observe(name="agent:create_plan")
async def create_plan(goal: str) -> list:
    """Create an execution plan for the goal."""
    return await planner.generate_plan(goal)

Expected trace output:

Trace: handle_request
└── Agent: agent:plan_and_execute (4,567ms)
    ├── Span: agent:create_plan (234ms)
    ├── Tool: tool:search (156ms)
    ├── Tool: tool:calculate (78ms)
    └── Generation: llm:summarize (890ms)

Chain

When to use: Multi-step pipelines, sequential processing, workflow orchestration.

from caip_agents_sdk.observability import observe

@observe(name="chain:process_document", as_type="chain")
async def process_document(document: str) -> dict:
    """Multi-step document processing pipeline."""
    # Step 1: Extract text
    text = await extract_text(document)

    # Step 2: Analyze sentiment
    sentiment = await analyze_sentiment(text)

    # Step 3: Extract entities
    entities = await extract_entities(text)

    # Step 4: Generate summary
    summary = await generate_summary(text)

    return {
        "sentiment": sentiment,
        "entities": entities,
        "summary": summary
    }

Expected trace output:

Trace: document_pipeline
└── Chain: chain:process_document (2,345ms)
    ├── Span: extract_text (45ms)
    ├── Generation: analyze_sentiment (456ms)
    ├── Generation: extract_entities (567ms)
    └── Generation: generate_summary (890ms)

Embedding

When to use: Text embedding generation, vector creation.

from caip_agents_sdk.observability import observe

@observe(name="embed:query", as_type="embedding")
async def embed_query(text: str) -> list:
    """Generate embedding for query text."""
    response = await openai.Embedding.acreate(
        model="text-embedding-3-small",
        input=text
    )
    return response.data[0].embedding

@observe(name="embed:documents", as_type="embedding")
async def embed_documents(documents: list) -> list:
    """Generate embeddings for multiple documents."""
    embeddings = []
    for doc in documents:
        emb = await embed_query(doc)
        embeddings.append(emb)
    return embeddings

Expected trace output:

Trace: rag_indexing
└── Embedding: embed:documents (567ms)
    ├── Embedding: embed:query (45ms)
    ├── Embedding: embed:query (43ms)
    └── Embedding: embed:query (44ms)

Guardrail

When to use: Input validation, safety checks, content filtering, compliance checks.

from caip_agents_sdk.observability import observe

@observe(name="guard:check_input", as_type="guardrail")
async def check_input_safety(text: str) -> dict:
    """Check if user input is safe to process."""
    result = await safety_checker.check(text)
    return {
        "safe": result.is_safe,
        "flags": result.flags,
        "action": "proceed" if result.is_safe else "block"
    }

@observe(name="guard:check_output", as_type="guardrail")
async def check_output_safety(response: str) -> dict:
    """Check if model output is safe to return."""
    result = await output_checker.check(response)
    if not result.is_safe:
        return await generate_safe_response()
    return response

Expected trace output:

Trace: safe_chat
├── Guardrail: guard:check_input (23ms)
│   └── Output: {"safe": true, "action": "proceed"}
├── Generation: llm:generate (890ms)
└── Guardrail: guard:check_output (34ms)
    └── Output: {"safe": true}

The @observe Decorator

Basic Usage

from caip_agents_sdk.observability import observe

@observe(name="my_function")
def sync_function(data: str) -> str:
    return process(data)

@observe(name="my_async_function")
async def async_function(query: str) -> str:
    return await some_async_call(query)

Parameters

Parameter	Type	Description
`name`	`str`	Display name in Langfuse UI (defaults to function name)
`as_type`	`str`	Observation type (see table above)
`capture_input`	`bool`	Whether to record function arguments (default: `True`)
`capture_output`	`bool`	Whether to record return value (default: `True`)

Automatic Nesting

Child observations are automatically linked to their parent:

@observe(name="main_process")
async def main_process(query: str) -> str:
    # Creates parent observation
    context = await fetch_context(query)  # Child 1
    response = await generate(query, context)  # Child 2
    return response

@observe(name="fetch_context", as_type="retriever")
async def fetch_context(query: str) -> dict:
    # Automatically nested under main_process
    return {"docs": [...]}

@observe(name="generate", as_type="generation")
async def generate(query: str, context: dict) -> str:
    # Automatically nested under main_process
    return "Generated response"

Resulting trace tree:

main_process
├── fetch_context
└── generate

User & Session Tracking

Using propagate_attributes

The propagate_attributes context manager attaches metadata to all nested observations:

from caip_agents_sdk.observability import observe, propagate_attributes

@observe(name="handle_request")
async def handle_request(user_id: str, session_id: str, message: str):
    with propagate_attributes(
        user_id=user_id,           # Appears in User column
        session_id=session_id,     # Groups related traces
        tags=["production", "v2"], # Filterable labels
        metadata={"team": "platform"}  # Custom key-value pairs
    ):
        return await process_message(message)

Viewing in Dashboard

User and session data appears in multiple places:

Location	What You'll See
Trace list	User column for quick filtering
Sessions view	Grouped conversation threads
Users view	All traces by user

Learn More

See Users & Sessions for detailed user and session tracking documentation.

Complete Example: RAG Pipeline

Here's a complete example showing multiple observation types working together:

from caip_agents_sdk.observability import observe, propagate_attributes, flush
import asyncio

@observe(name="rag:answer_question")
async def answer_question(query: str, user_id: str) -> str:
    """Complete RAG pipeline with full tracing."""
    with propagate_attributes(user_id=user_id, tags=["rag", "production"]):
        # Step 1: Validate input
        if not await validate_query(query):
            return "Invalid query"

        # Step 2: Retrieve relevant documents
        docs = await retrieve_documents(query)

        # Step 3: Build context
        context = await build_context(docs)

        # Step 4: Generate answer
        answer = await generate_answer(query, context)

        # Step 5: Check safety
        safe_answer = await check_output(answer)

        return safe_answer

@observe(name="rag:validate", as_type="guardrail")
async def validate_query(query: str) -> bool:
    return len(query) > 0 and len(query) < 1000

@observe(name="rag:retrieve", as_type="retriever")
async def retrieve_documents(query: str) -> list:
    embedding = await embed_query(query)
    return await vector_store.search(embedding, k=5)

@observe(name="rag:embed", as_type="embedding")
async def embed_query(query: str) -> list:
    return await embedder.embed(query)

@observe(name="rag:build_context")
async def build_context(docs: list) -> str:
    return "\n".join([d["content"] for d in docs])

@observe(name="rag:generate", as_type="generation")
async def generate_answer(query: str, context: str) -> str:
    return await llm.complete(f"Context: {context}\n\nQuestion: {query}")

@observe(name="rag:safety_check", as_type="guardrail")
async def check_output(answer: str) -> str:
    if await safety_checker.is_safe(answer):
        return answer
    return "I cannot answer that question."

# Run the pipeline
async def main():
    answer = await answer_question(
        query="What is the deployment process?",
        user_id="user_123"
    )
    print(answer)
    flush()

asyncio.run(main())

Expected trace in Langfuse:

Trace: rag:answer_question (2,456ms)
├── Guardrail: rag:validate (8ms) ✓
├── Retriever: rag:retrieve (345ms)
│   └── Embedding: rag:embed (89ms)
├── Span: rag:build_context (12ms)
├── Generation: rag:generate (1,890ms)
│   ├── Model: gpt-4o
│   ├── Input Tokens: 1,234
│   ├── Output Tokens: 256
│   └── Cost: $0.0156
└── Guardrail: rag:safety_check (23ms) ✓

Adding Metadata

Static Metadata

Add fixed metadata at decoration time:

@observe(
    name="process_order",
    metadata={
        "service": "order-processor",
        "version": "2.1.0"
    }
)
async def process_order(order_id: str) -> dict:
    return {"status": "completed"}

Dynamic Metadata

Add metadata during execution based on runtime values:

from caip_agents_sdk.observability import observe, get_client

@observe(name="search_products")
async def search_products(query: str) -> list:
    results = await database.search(query)

    # Add metadata based on results
    client = get_client()
    if client:
        client.update_current_span(
            metadata={
                "result_count": len(results),
                "query_length": len(query),
                "has_results": len(results) > 0
            }
        )

    return results

Error Handling

from caip_agents_sdk.observability import observe, get_client

@observe(name="risky_operation")
async def risky_operation(data: dict) -> dict:
    try:
        result = await process(data)
        return result
    except Exception as e:
        # Record error in trace metadata
        client = get_client()
        if client:
            client.update_current_span(
                metadata={
                    "error": str(e),
                    "error_type": type(e).__name__
                }
            )
        raise  # Re-raise to mark trace as failed

Tips & Best Practices

Naming Conventions

Use prefixes to categorize operations:

agent: — Agent orchestration
tool: — Tool/function calls
rag: — RAG pipeline steps
llm: — Direct LLM calls
api: — External API calls
guard: — Guardrail checks

Always Flush

Call flush() before your application exits to ensure all traces are sent:

from caip_agents_sdk.observability import flush
flush()

Don't Log Sensitive Data

Avoid including PII, API keys, or secrets in:

Observation names
Metadata values
Captured inputs/outputs

Next Steps

Users & Sessions — Track user activity and conversations
Best Practices — Production-ready patterns
Complete Examples — Ready-to-run code samples

Understanding Traces​

Trace Structure​

SDK Auto-Generated Trace Structure​

Core Concepts​

Viewing Traces in Langfuse​

Trace List View​

Filtering Traces​

Single Trace View​

Generation Analysis​

Generation Details​

Why This Matters​

Observation Types​

Observation Type Examples​

Span (Default)​

Generation​

Retriever​

Tool​

Agent​

Chain​

Embedding​

Guardrail​

The @observe Decorator​

Basic Usage​

Parameters​

Automatic Nesting​

User & Session Tracking​

Using propagate_attributes​

Viewing in Dashboard​

Complete Example: RAG Pipeline​

Adding Metadata​

Static Metadata​

Dynamic Metadata​

Error Handling​

Tips & Best Practices​

Next Steps​

Understanding Traces

Trace Structure

SDK Auto-Generated Trace Structure

Core Concepts

Viewing Traces in Langfuse

Trace List View

Filtering Traces

Single Trace View

Generation Analysis

Generation Details

Why This Matters

Observation Types

Observation Type Examples

Span (Default)

Generation

Retriever

Tool

Agent

Chain

Embedding

Guardrail

The @observe Decorator

Basic Usage

Parameters

Automatic Nesting

User & Session Tracking

Using propagate_attributes

Viewing in Dashboard

Complete Example: RAG Pipeline

Adding Metadata

Static Metadata

Dynamic Metadata

Error Handling

Tips & Best Practices

Next Steps
